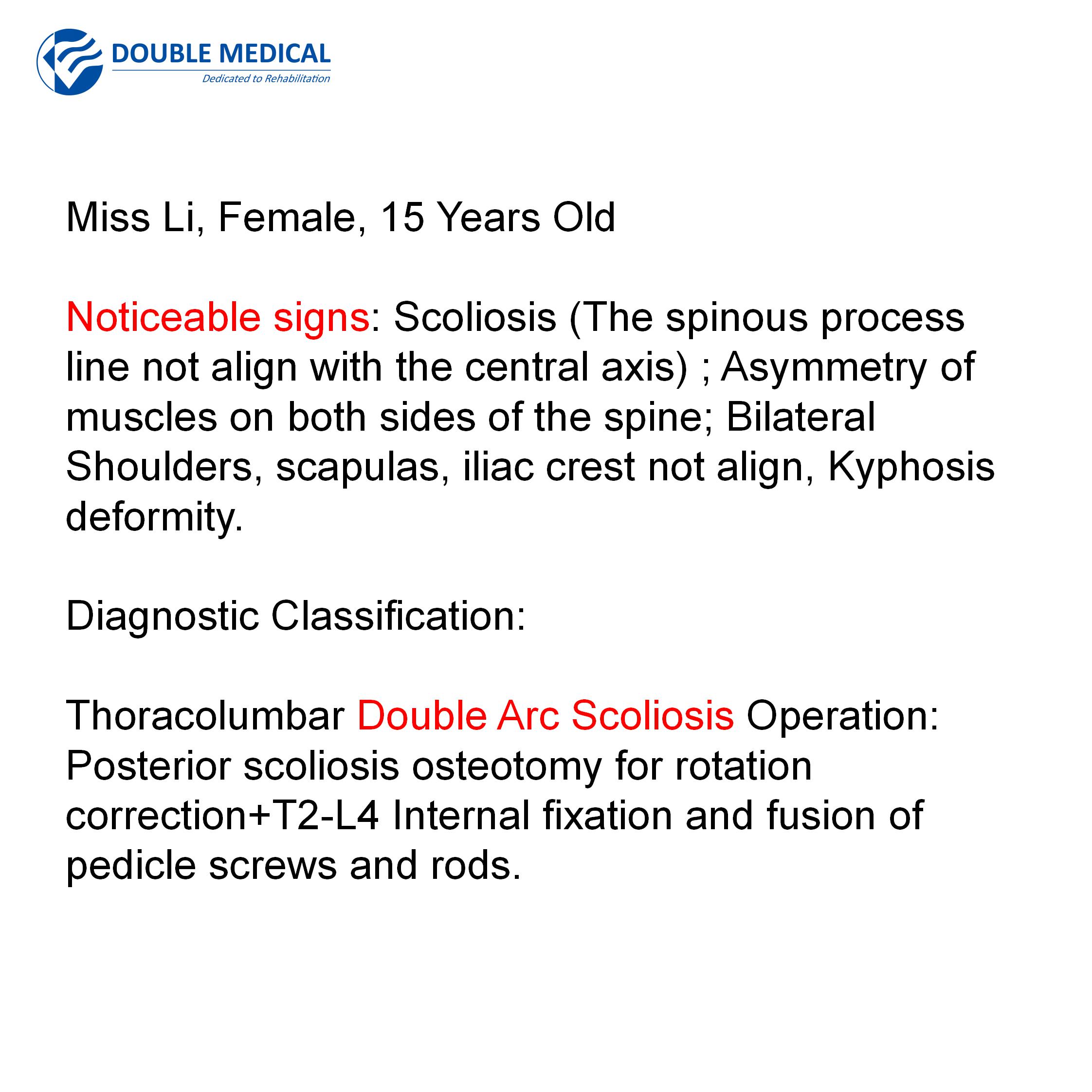

Miss Li, Female, 15 Years Old

Noticeable signs: Scoliosis (The spinous process line not align with the central axis) ; Asymmetry of muscles on both sides of the spine; Bilateral Shoulders, scapulas, iliac crest not align, Kyphosis deformity.

Diagnostic Classification:

Thoracolumbar Double Arc Scoliosis Operation:

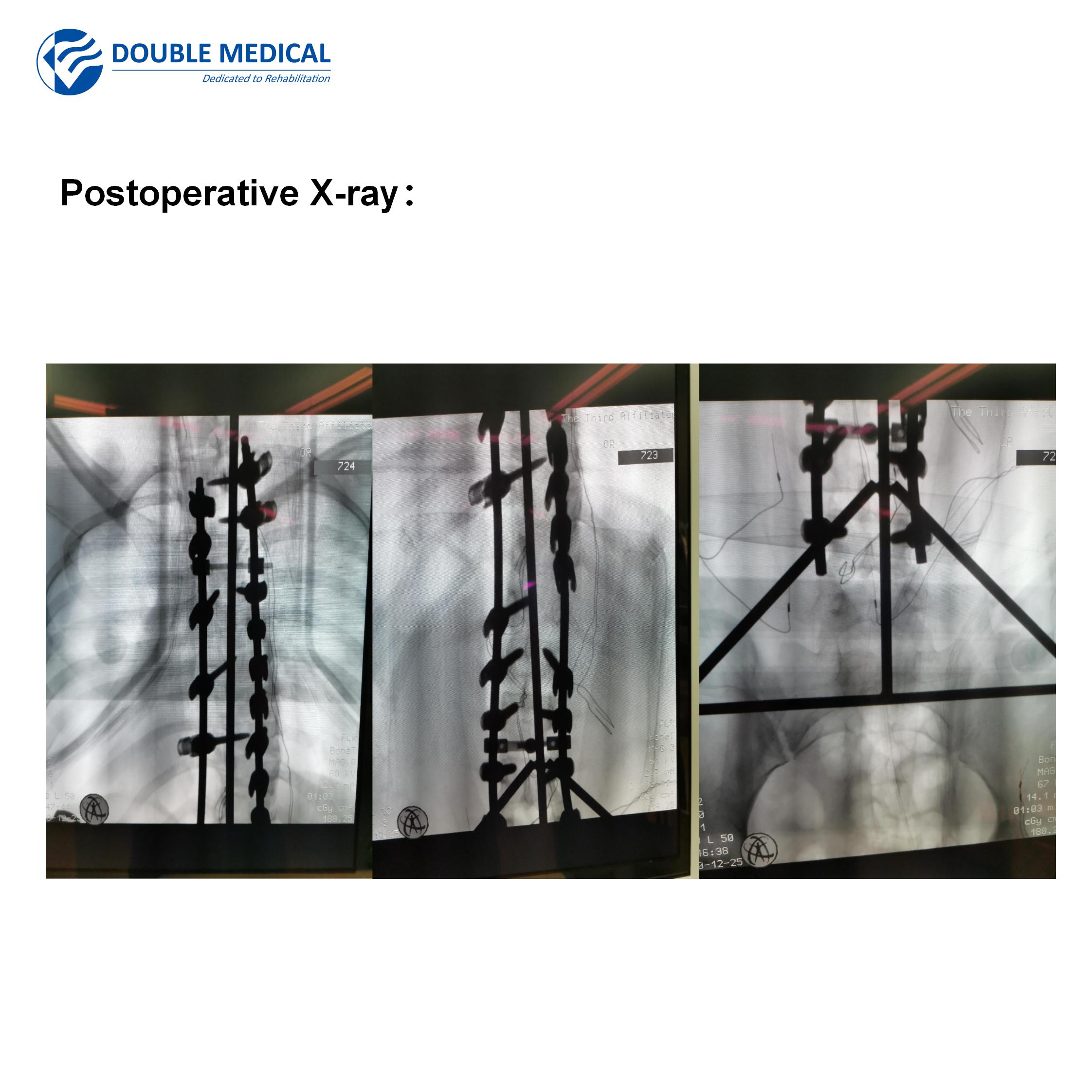

Posterior scoliosis osteotomy for rotation correction+T2-L4 Internal fixation and fusion of pedicle screws and rods.

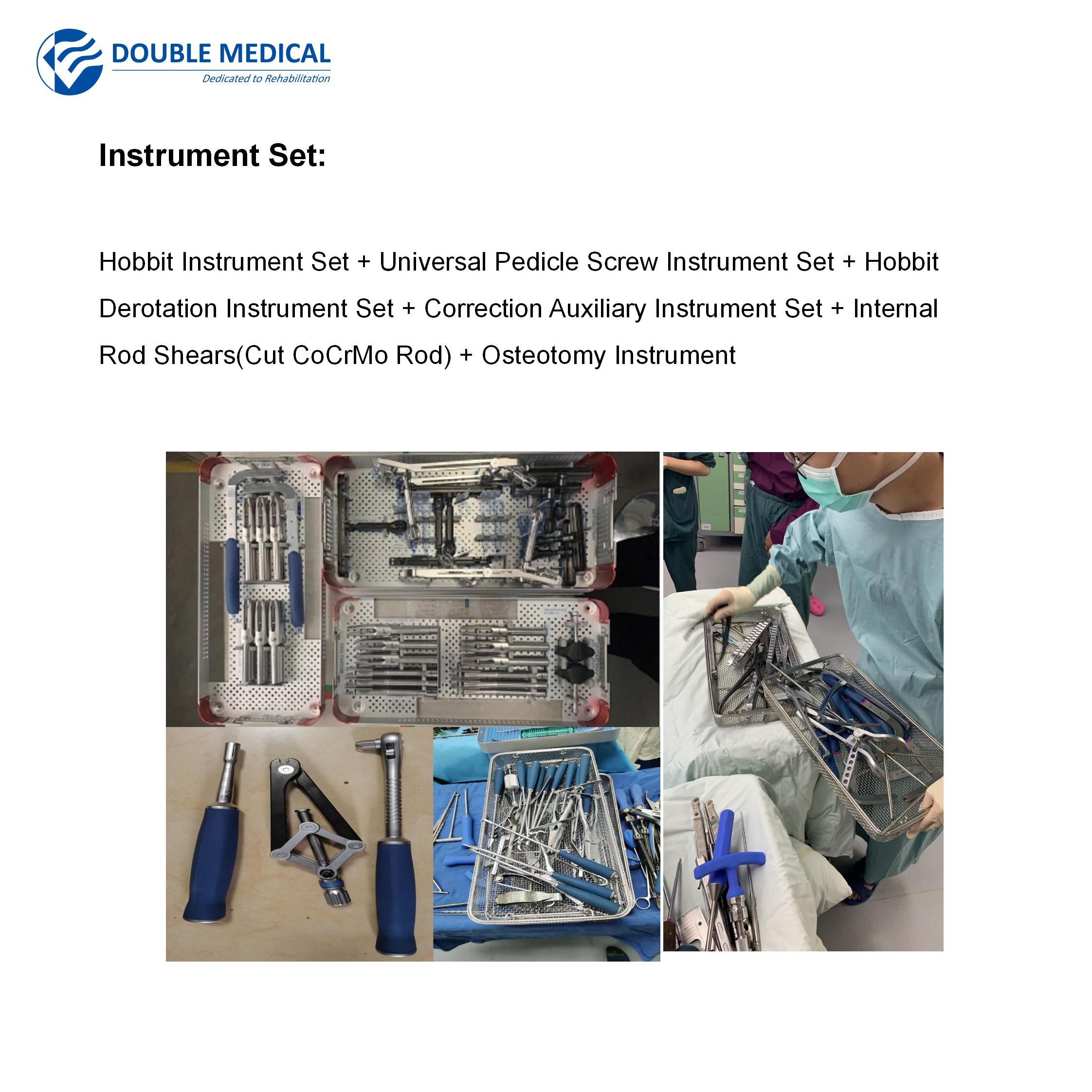

Instrument Set:

Hobbit Instrument Set + Universal Pedicle Screw Instrument Set + Hobbit Derotation Instrument Set + Correction Auxiliary Instrument Set + Internal Rod Shears(Cut CoCrMo Rod) + Osteotomy Instrument

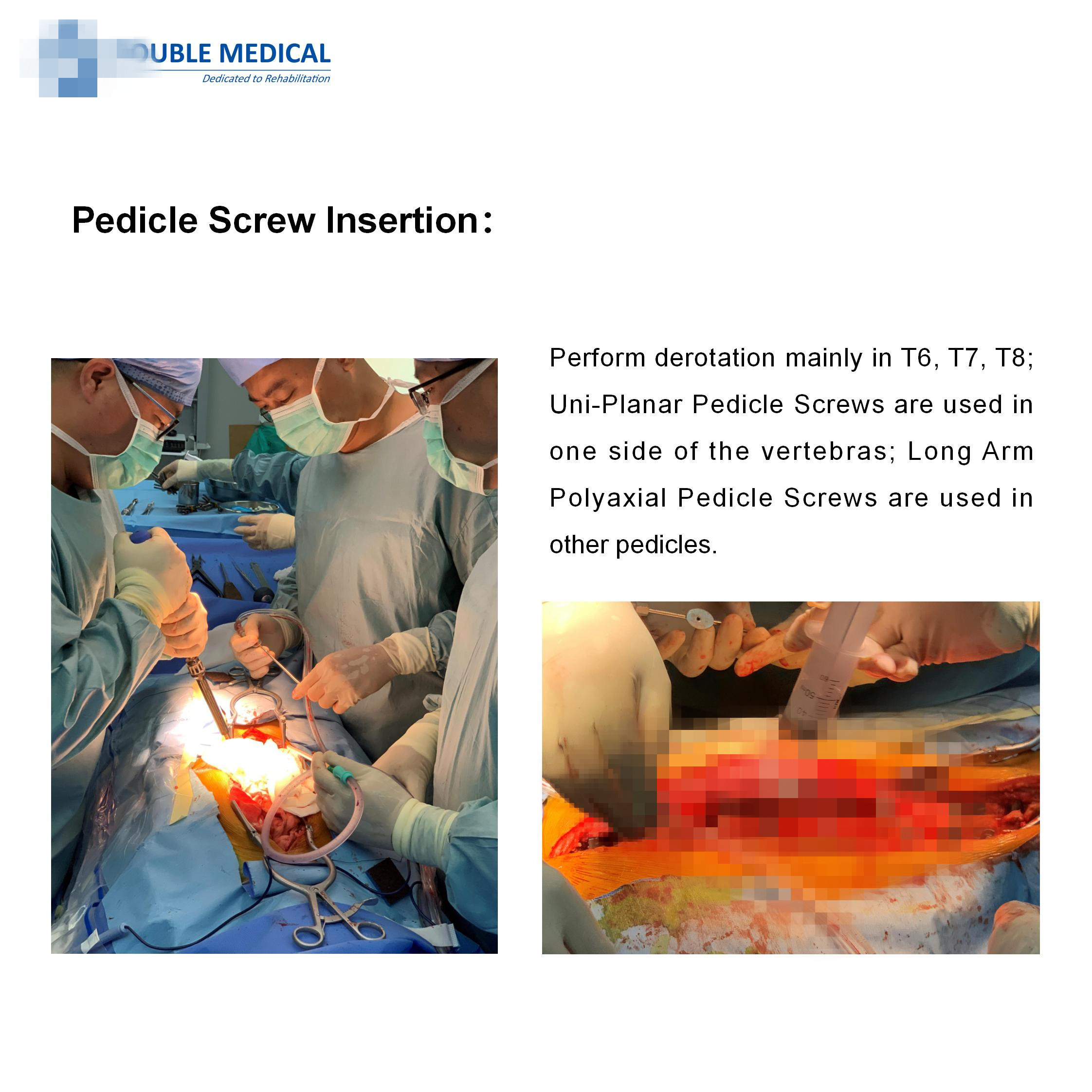

Pedicle Screw Insertion：

Perform derotation mainly in T6, T7, T8; Uni-Planar Pedicle Screws are used in one side of the vertebras; Long Arm Polyaxial Pedicle Screws are used in other pedicles.

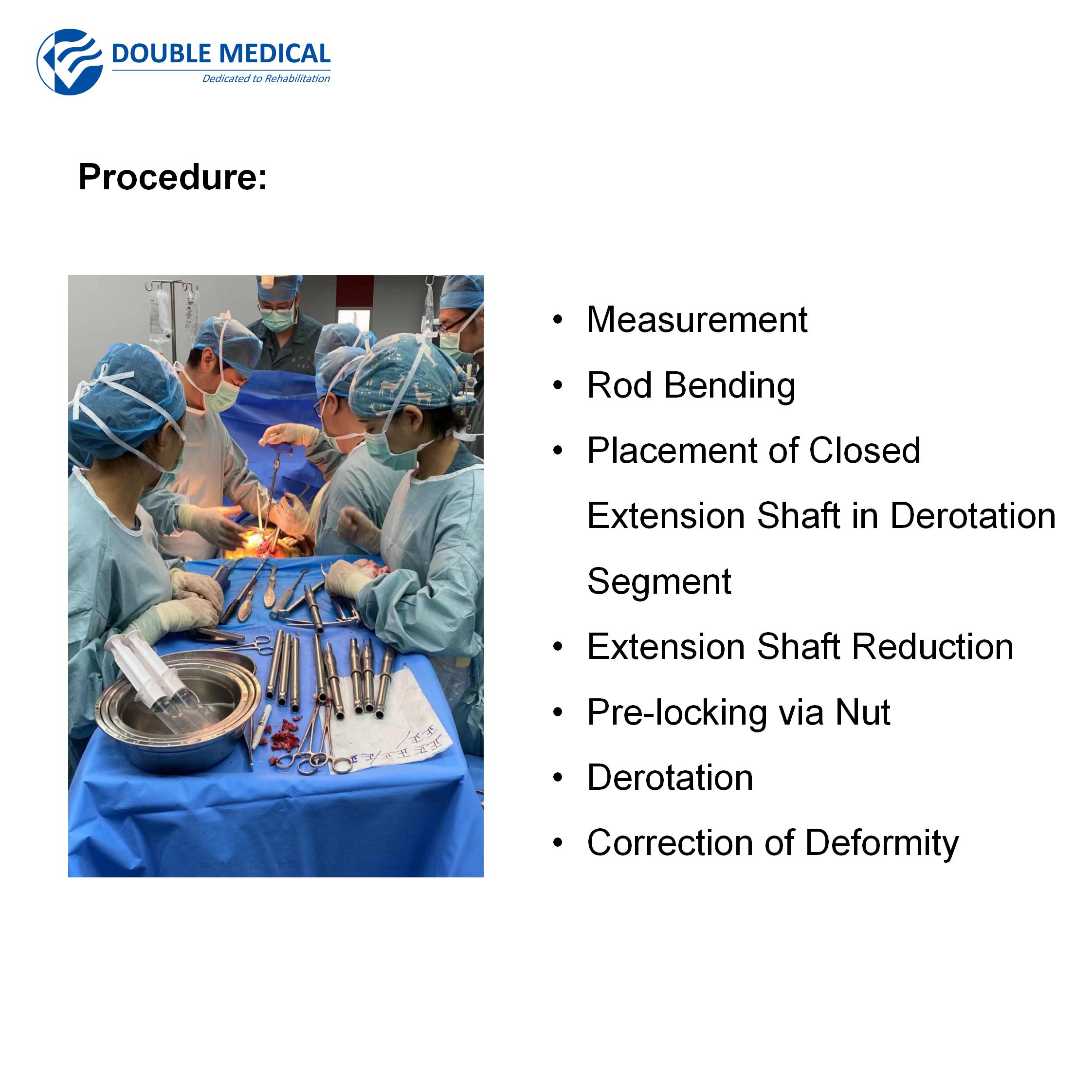

Procedure:

• Measurement
• Rod Bending
• Placement of Closed Extension Shaft in Derotation Segment
• Extension Shaft Reduction
• Pre-locking via Nut

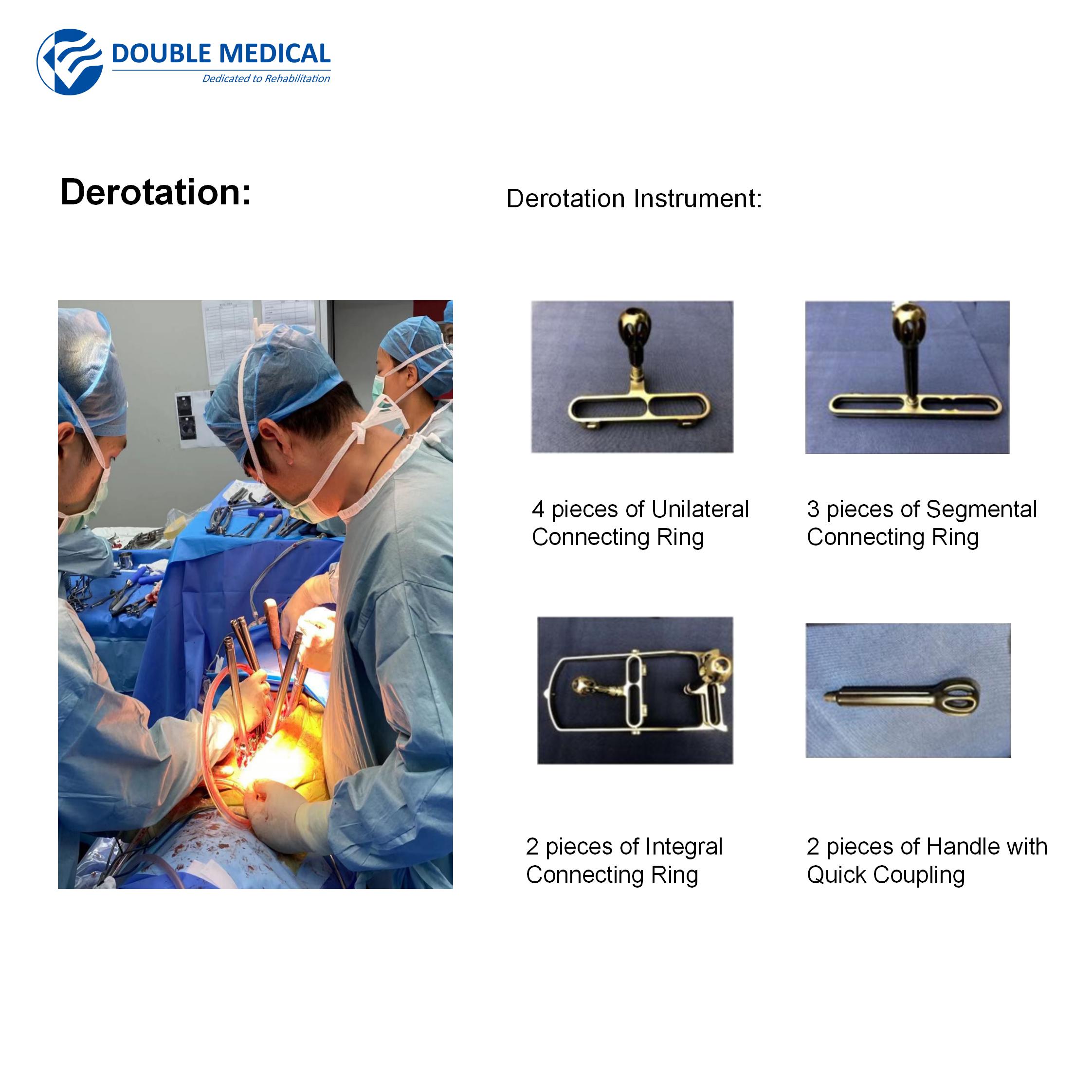

• Derotation
• Correction of Deformity

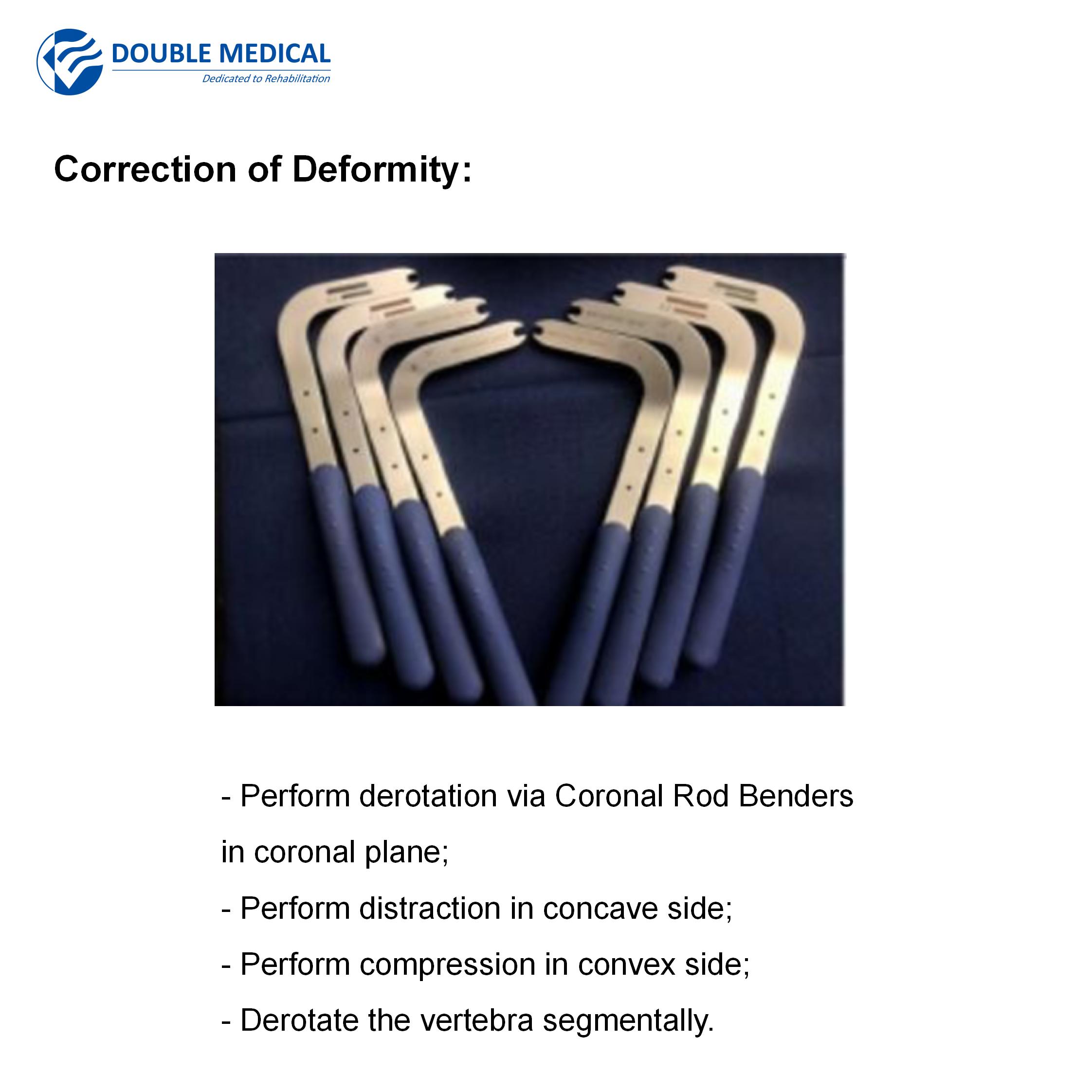

Correction of Deformity:

- Perform derotation via Coronal Rod Benders in coronal plane;
- Perform distraction in concave side;
- Perform compression in convex side;
- Derotate the vertebra segmentally.
