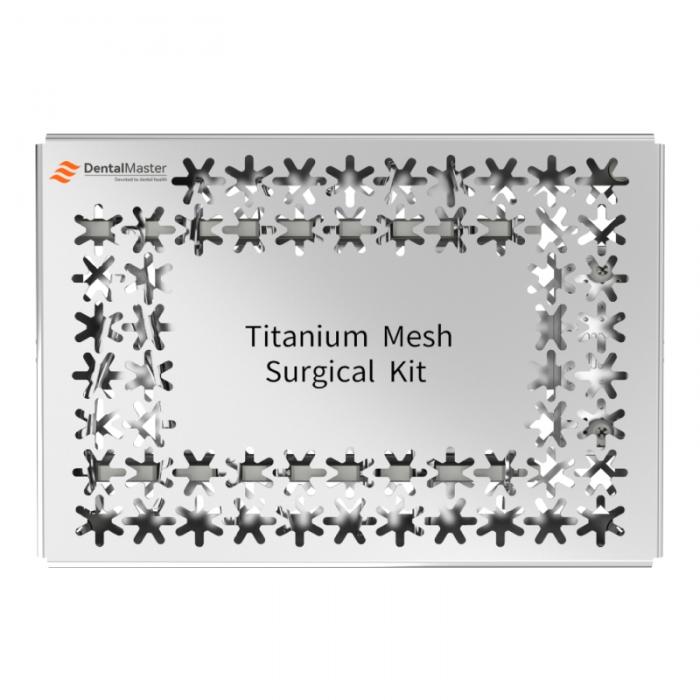

GBR Titanium Mesh Surgery Kit

Material：Titanium alloy Features: Wide head for effective fixation of the barrier membrane Thickened head for stable grasp lnverted cone-shaped design for enhancing anti-loosening effect Various sizes available Different anodic colors for easy differentiation Specification: Bone Tack φ2.0, φ1.0×3mm Bone Tack φ2.0, φ1.0×4mm Bone Tack φ2.0, φ1.0×5mm Bone Tack φ2.5, φ1.0×3mm Bone Tack φ2.5, φ1.0×4mm Bone Tack φ2.5, φ1.0×5mm

Indications: Used for periodontal reconstruction, promote bone regeneration at the site of bone defects. Material：Unalloyed titanium Features： Lightening hole design for supporting good blood supply channels. Ultra-thin design for reduced foreign body sensation and increasing support strength. Anatomical curvature design, high intraoperative fit. Easy operation to be cut and shaped. Specification: Titanium Mesh 20×11×11×0.2mm Titanium Mesh, 4×8×7×0.2mm Titanium Mesh, 7×12×9×0.2mm

Material: Titanium alloy Features:  Various types available. Convex head design for accurate placement of the center hole of the titanium mesh. Sharp high-precision screw thread for easy placement, increasing stability and reduced shedding rate. Tapping screw tip design for easy implantation. Specification： Supporting screw,φ2.0×9mm Supporting screw,φ2.0×11mm Supporting screw,φ2.0×13mm Supporting screw,φ2.0×15mm Supporting screw,φ2.0×17mm

Indications: Provide ideal space and maintain osteogenic results. Material：Unalloyed titanium Features: Torx design for supporting good blood supply channels. Bendable 3D form for easy crop and high fit. Ultra-thin design of 0.2mm, high support reduces soft tissue irritation. Anodic oxidation surface treatment shows smooth surface under the electron microscope. High antibacte-rial ability and  better biocompatibility. Specification： Rectangle Titanium Mesh, 4×10×7×0.2mm Rectangle Titanium Mesh,4×10×9×0.2mm

I Tenting Screw Indications: Used when it needs to be vertical/horizontal to GBR. Material: Titanium alloy Features: Make room for bone graft. Easy implantation with self-drilling design of the tip. Hole-drilling with limit drill before implantation. Specification： Tenting Screw, φ1.6×10mm Tenting Screw, φ1.6×7mm II Tenting Screw Indications: maintain the osteogenic space and fifix the barrier membrane Features： Provide stable support space for GBR. Fix the barrier membrane with its screw cap design effectively. Simplified surgery, easy operation. Specification: Tenting Screw φ1.4×3mm Tenting Screw φ1.6×11mm

Material: Stainless steel GBR Advanced Bone Tack and Tenting Screw Kit includes: Hook-Type Tack Holder Straight-Type Tack Holder Curved-Type Tack Holder Tack Extractor Short Machine Screwdriver Long Machine Screwdriver Limit Drill Instrument Box Bone Tack & Tenting Screw Box

Material: Stainless Steel&Aluminum Features: Widened cap for effort-saving. One-shot implantation, easy operation. Wave-style handle design for comfortable hold. 155°bending design for special tooth position manipulation. Inner cone design in the muzzle for easy connection. Specification： Automatic 2.0 Bone Tack Kit Automatic 2.5 Bone Tack Kit Automatic Bone Tack kit includes: Automatic Tack Handle with advanced Pull Back Mechanism Tack Positioner (in a protective case) 36 Titanium Bone Tacks (in varying sizes: 3mm, 4mm, and 5mm)

Indications: Suitable for surgeries that require maintenance of osteogenic space, and can be used for fifixing bone blocks and BBA bone grafting. Material:Titanium alloy Features: Ultra thin design: Head thickness of 0.9mm ensures that the height of the protruding bone surface after implantation is less than 1mm. Head Torx groove design, stronger holding screw driver. Different anodes for easy differentiation. Multiple Choices of lengths. Cutting edge self tapping groove design, convenient for implantation. Specification： Bone Screw, φ1.0×4mm Bone Screw, φ1.0×6mm Bone Screw, φ1.0×8mm Bone Screw, φ1.0×10mm Bone Screw, φ1.0×12mm Blunt-Tip Bone Screw, φ1.3×4mm Blunt-Tip Bone Screw, φ1.3×6mm Blunt-Tip Bone Screw, φ1.3×8mm Blunt-Tip Bone Screw, φ1.3×10mm Blunt-Tip Bone Screw, φ1.3×12mm Sharp-Tip Bone Screw，φ1.3×4mm Sharp-Tip Bone Screw，φ1.3×6mm Sharp-Tip Bone Screw，φ1.3×8mm Sharp-Tip Bone Screw，φ1.3×10mm Sharp-Tip Bone Screw，φ1.3×12mm
