Short Orthodontic Screw Holder

The DM driving system is composed of dental implant and implant accessories. The implant is made of TA4 pure titanium material; the abutment, cover screw and healing abutment are made of TC4 titanium alloy. The surface of the implant was treated by acid etching and sand blasting.

Indications Anchor screw is a fixture accessory implanted in the maxilla and mandible to assist in orthodontic treatment by producing a counterforce that resists the movement of the teeth. Features Orthodontic wires are easy to be interspersed with ligation hole design. Smooth head reduces the foreign body sensation. Smooth neck acts as the suspension of tension springs and rubber chains. Smooth gingival neck reduces bacteria attachment. Tissue pressurization stopper prevents tissue hyperplasia effectively. Taper design improves initial stability. Tapping tip design for easy implantation. Specifications Anchor Screw, Ф1.2×11mm Anchor Screw, Ф1.2×12mm Anchor Screw, Ф1.2×14mm Anchor Screw, Ф1.4×9mm Anchor Screw, Ф1.4×11mm Anchor Screw, Ф1.4×13mm Anchor Screw, Ф1.6×9mm Anchor Screw, Ф1.6×11mm Anchor Screw, Ф1.6×13mm Anchor Screw, Ф1.8×9mm Anchor Screw, Ф1.8×11mm Anchor Screw, Ф1.8×13mm Anchor Screw, Ф2.0×9mm Anchor Screw, Ф2.0×11mm Anchor Screw, Ф2.0×13mm Anchor Screw, Ф2.0×15mm

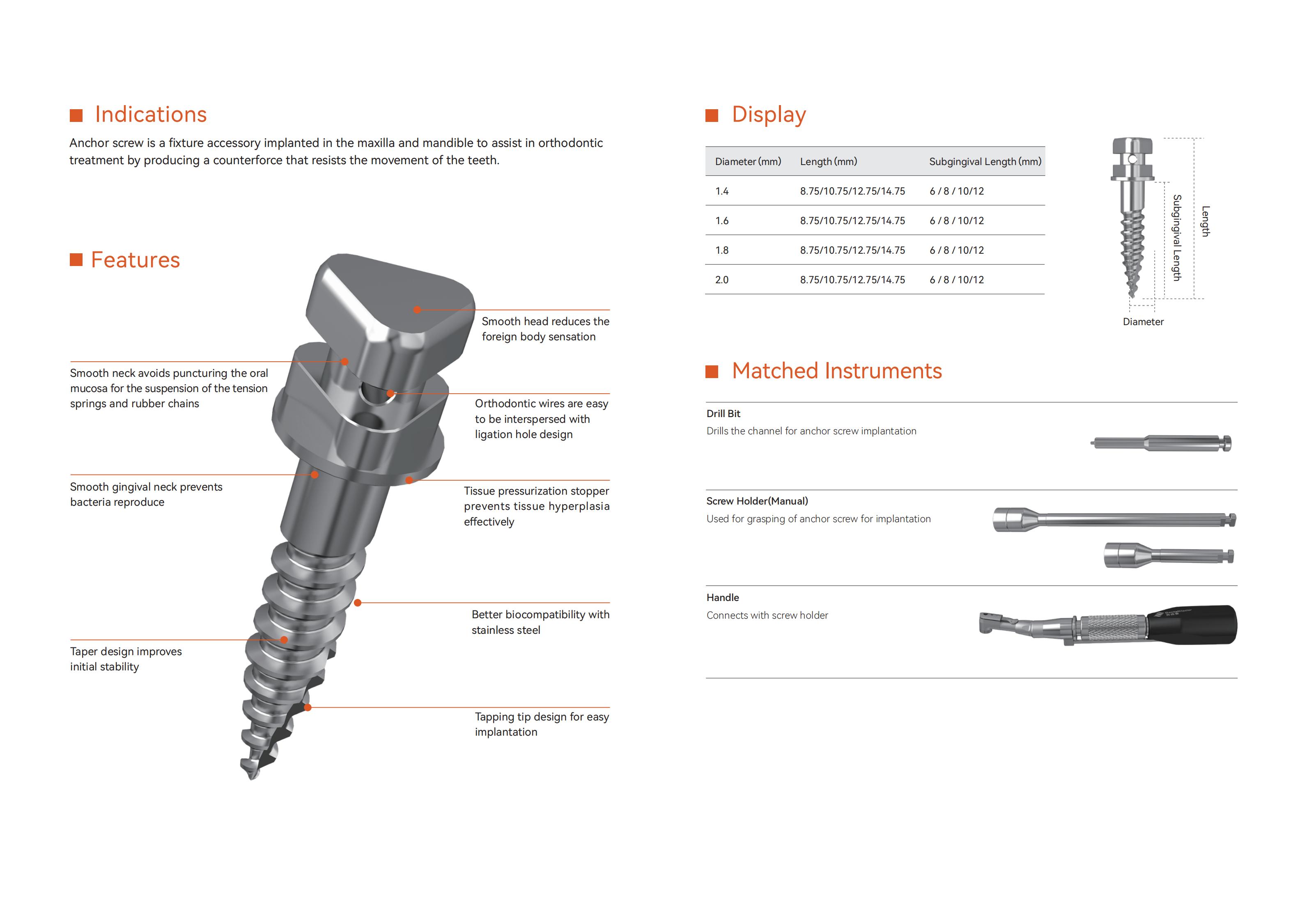

Indications Anchor screw is a fixture accessory implanted in the maxilla and mandible to assist in orthodontic treatment by producing a counterforce that resists the movement of the teeth. Features Smooth neck avoids puncturing the oral mucosa for the suspension of the tension springs and rubber chains. Smooth head reduces the foreign body sensation. Orthodontic wires are easy to be interspersed with ligation hole design. Smooth gingival neck prevents bacteria reproduce. Tissue pressurization stopper prevents tissue hyperplasia effectively. Better biocompatibility with stainless steel. Taper design improves initial stability. Tapping tip design for easy implantation. Specifications: Anchor Screw, Ф1.4×6mm Anchor Screw, Ф1.4×8mm Anchor Screw, Ф1.4×10mm Anchor Screw, Ф1.4×12mm Anchor Screw, Ф1.6×6mm Anchor Screw, Ф1.6×8mm Anchor Screw, Ф1.6×10mm Anchor Screw, Ф1.6×12mm Anchor Screw, Ф1.8×6mm Anchor Screw, Ф1.8×8mm Anchor Screw, Ф1.8×10mm Anchor Screw, Ф1.8×12mm Anchor Screw, Ф2.0×6mm Anchor Screw, Ф2.0×8mm Anchor Screw, Ф2.0×10mm Anchor Screw, Ф2.0×12mm

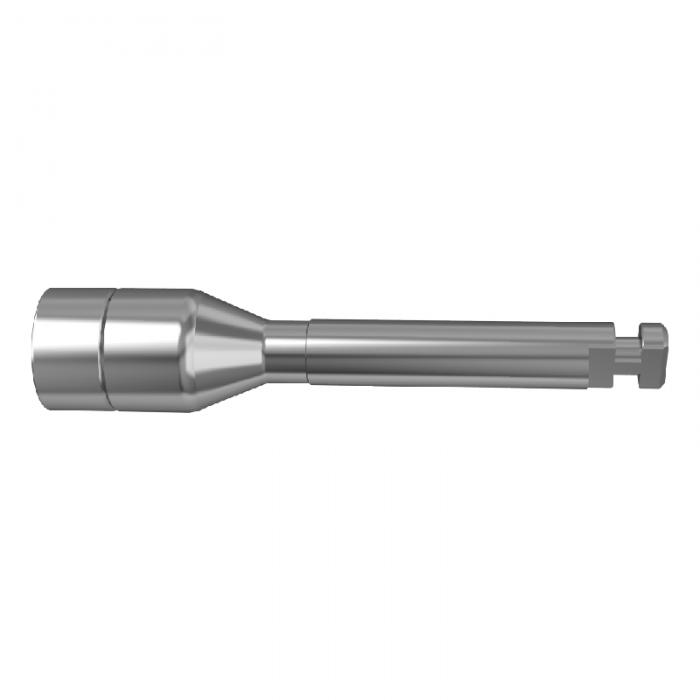

Indications Used for grasping of anchor screw for implantation. Material: 304 Stainless steel Specifications Orthodontic Screw Holder Ⅰ, 44mm

Indications Drills the channel for anchor screw implantation. Material: 304 Stainless steel Specifications Orthodontic Screw Drill Ⅰ, φ0.5mm

Indications Connects with screw holder. Material: 304 Stainless steel Specifications Orthodontic Screw Modular Driver, φ25.5×164mm
